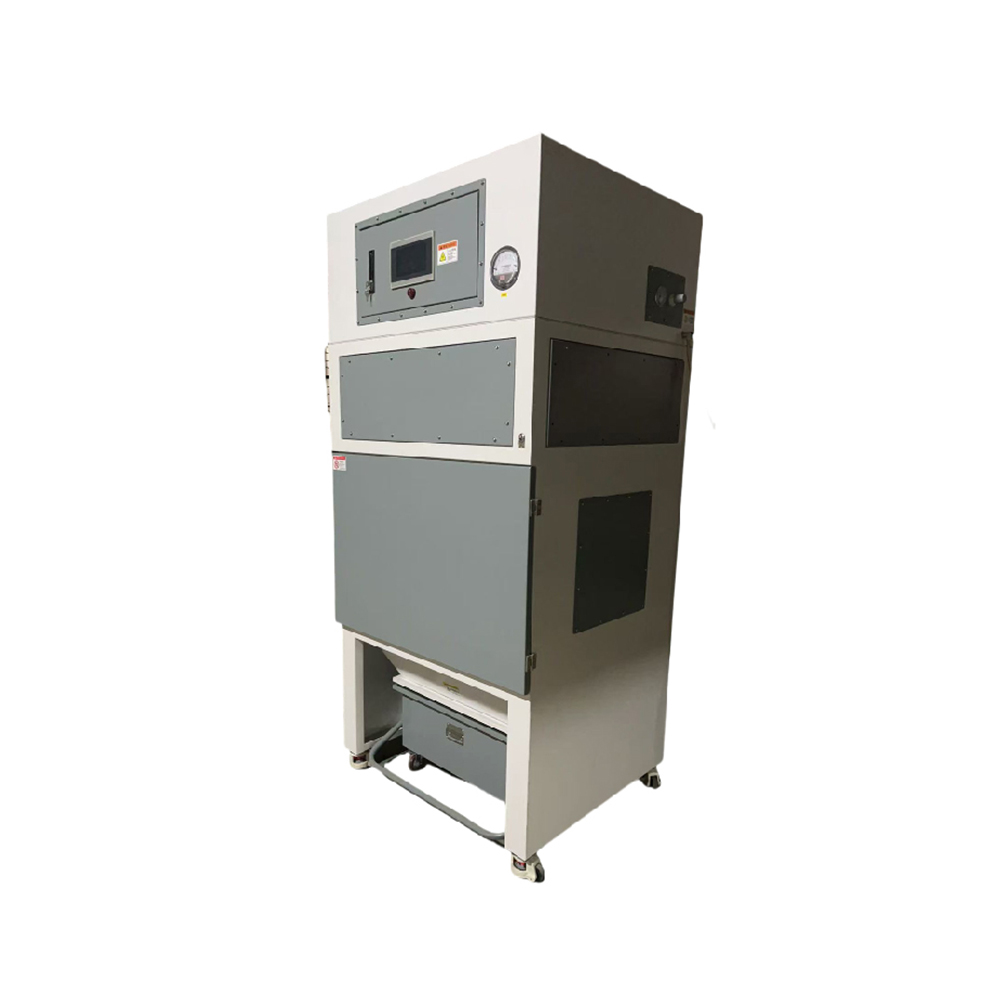

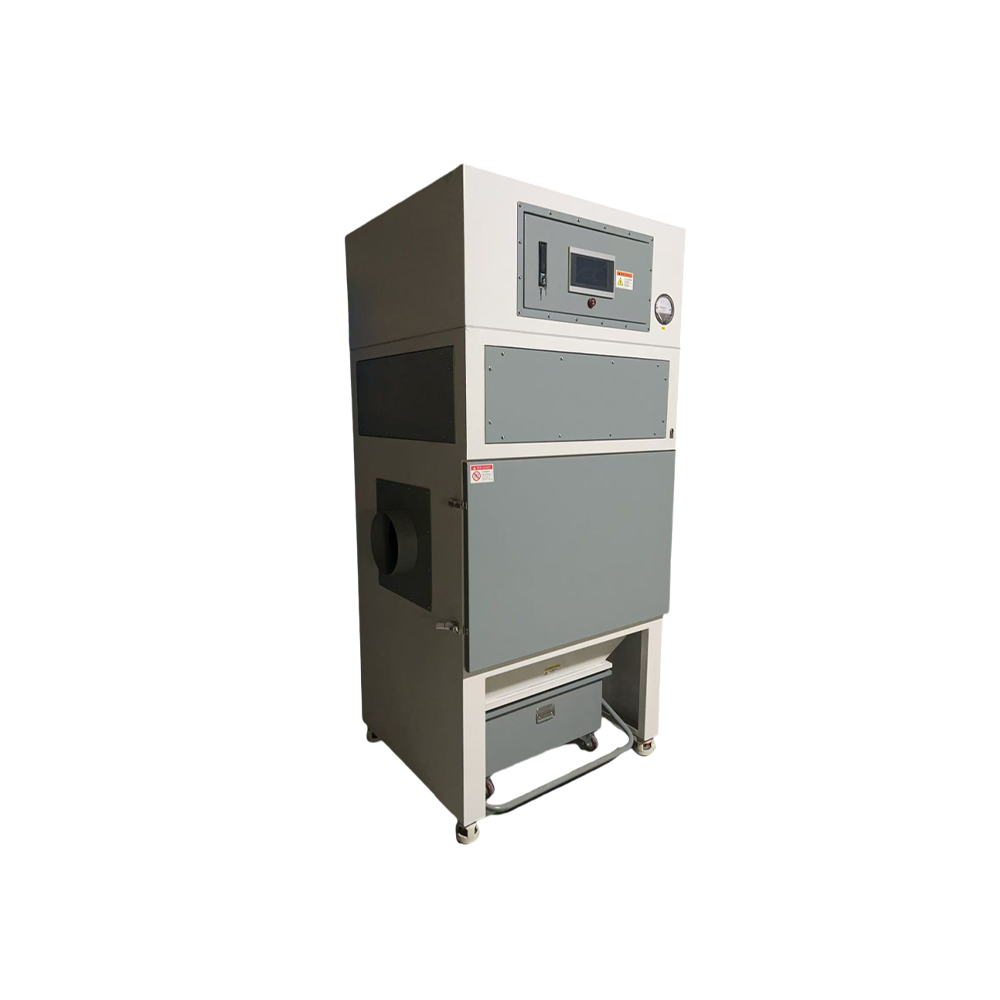

##Introduction to Pulse Filter Dust Collector 1、 Overview Pulse filter dust collector is an efficient dry dust removal equipment that uses fiber filter cartridges to filter dusty gases and maintains long-term stable operation of the filter cartridges through pulse jet cleaning pipelines. It has high dust removal efficiency, stable operation, and easy maintenance, and is widely used in industries such as cement, metallurgy, chemical, food, and medicine. 2、 Working principle 1. Filtration: Dust containing gas enters the dust collector through the inlet and is evenly distributed to the outer surface of each filter element through the guide plate. Dust is trapped on the surface of the filter element, and clean gas enters the clean air chamber through the filter element and is discharged through the outlet. 2. Dust removal: As dust accumulates, the resistance of the filter element increases. When the set value is reached, the control system starts the dust cleaning program. The electromagnetic pulse valve opens, and compressed air is sprayed into the interior of the filter element through the spray pipe, causing the filter element to instantly expand and shake off surface dust. After cleaning, the filter element restores its filtering ability. 3、 Structural composition The main components include: Box body Support and seal the dust collector. Filter element: The core filter element is commonly made of materials such as polyester and polypropylene. Flower board: Fixed filter element, separates dusty gas and clean air chamber. Spray system: including pulse valve, spray pipe, etc., responsible for cleaning dust. Control system: Control the cleaning cycle and pulse width. 4、 Performance characteristics Efficient: The dust removal efficiency for dust particles larger than 0.1 μ m can reach 99.9%. Stability: The filter has a long lifespan, thorough dust removal, and low operating resistance. Low consumption: Low energy consumption for dust cleaning and small compressed air usage. Easy maintenance: The filter element is easy to replace and the maintenance workload is small. 5、 Application Fields Suitable for various industrial dust control, such as: Cement industry: crushing, packaging, transportation and other processes. Metallurgical industry: flue gas purification for blast furnaces, converters, electric furnaces, etc. Chemical industry: processes such as drying, crushing, and screening. Food industry: dust collection for flour, starch, milk powder, etc. Pharmaceutical industry: production processes such as raw materials and formulations. 6、 Key selection points When selecting, it is necessary to consider: Processing air volume: determined according to actual working conditions. Filtering wind speed: affects dust removal efficiency and filter cartridge life. Dust properties: including particle size, concentration, viscosity, etc. Working temperature: Choose the appropriate filter material. Emission requirements: Select dust removal efficiency according to environmental standards. 7、 Development Trends In the future, pulse filter dust collectors will develop in the following directions: Efficient and low resistance: Developing new filter materials to improve filtration efficiency and reduce operating resistance. Intelligent control: achieve automatic dust cleaning and real-time monitoring of operating status. Energy saving and environmental protection: Optimize structural design, reduce energy consumption, and minimize secondary pollution. 8、 Summary** Pulse filter dust collectors are widely used in industrial dust control due to their advantages of high efficiency, stability, low consumption, and easy maintenance. With technological advancements, its performance will further improve and its application areas will continue to expand. Model YPLXMC-CT-1.5 YPLXMC-CT-3 YPLXMC-CT-4 YPLXMC-CT-5.5 YPLXMC-CT-7.5 YPLXMC-YS-3 YPLXMC-YS-4 YPLXMC-YS-3 YPLXMC-YS-4 Power supply (V/HZ) 380/50 380/50 380/50 380/50 380/50 380/50 380/50 Power (KW) 1.5 3 4 5.5 7.5 3 4 5.5 7.5 Wind pressure (PA) 1360-1220 2050-1860 2120-1830 2014-1320 2554-1673 2050-1860 2120-1830 2014-1320 2554-1673 Flow rate (M3/H) 2600-3500 3900-4600 4500-5400 4012-7419 5712-10562 3900-4600 4500-5400 4012-7419 5712-10562 Vacuum diameter (mm) ¢ 150 ¢ 250 ¢ 250 ¢ 250 ¢ 300 ¢ 250 ¢ 250 ¢ 250 ¢ 300 Filter area 15.2 36 40 48 72 36 40 48 72 Filter Material Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Polyester Fiber Number of filter cartridges 4 4 4 4 6 4 4 4 4 6 Filter cartridge model ¢ 200 * 660 ¢ 325 * 660 ¢ 325 * 660 ¢ 325 * 900 ¢ 325 * 900 ¢ 325 * 660 ¢ 325 * 660 ¢ 325 * 900 ¢ 325 * 900 Dust cleaning method: offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback, offline pulse blowback Spray pressure 0.6MPA 0.6MPA 0.6MPA 0.6MPA 0.6MPA 0.6MPA 0.6MPA 0.6MPA 0.6MPA Gray box structure drawer type drawer type drawer type drawer type pressure lift type pressure lift type Dimensions 680 * 680 * 1696 1050 * 960 * 1924 1050 * 960 * 1924 1050 * 960 * 2244 1560 * 960 * 2297 1050 * 960 * 2379 1050 * 960 * 2379 1050 * 960 * 2679 1560 * 960 * 2706
